Easy set up with our Image handling viewer XView_2025
General information

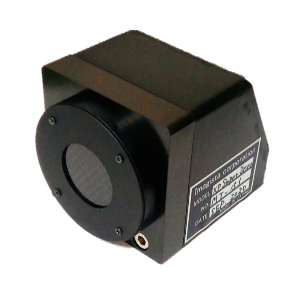

X-Point Super Zero is a TV sensor for X-ray imaging product such as X-ray inspection machine.It captures live video image to PC as a digital camera and we preparted two types of interface model GigE and USB3.0. you can easily create environment using the free viewer software XView.
Application

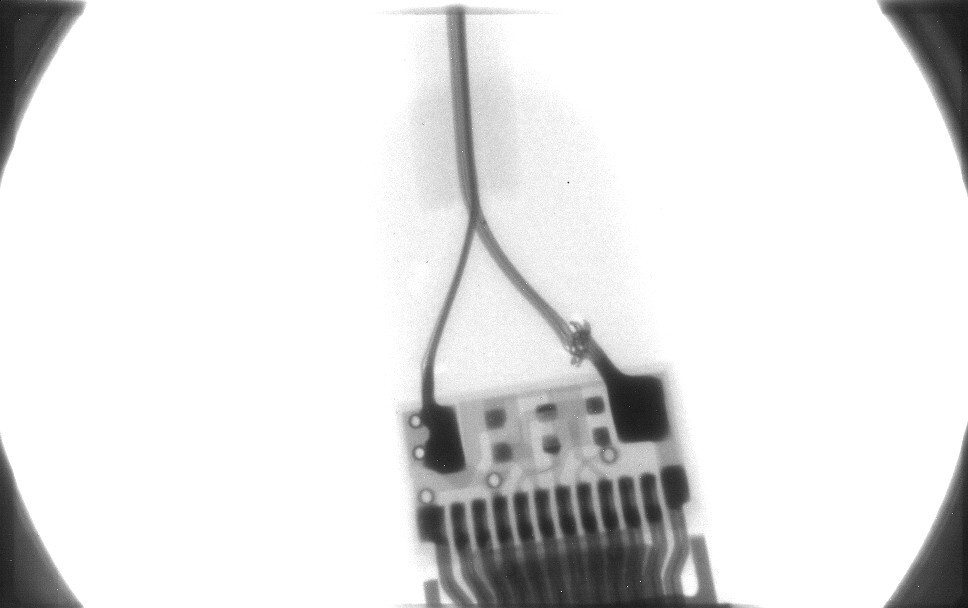

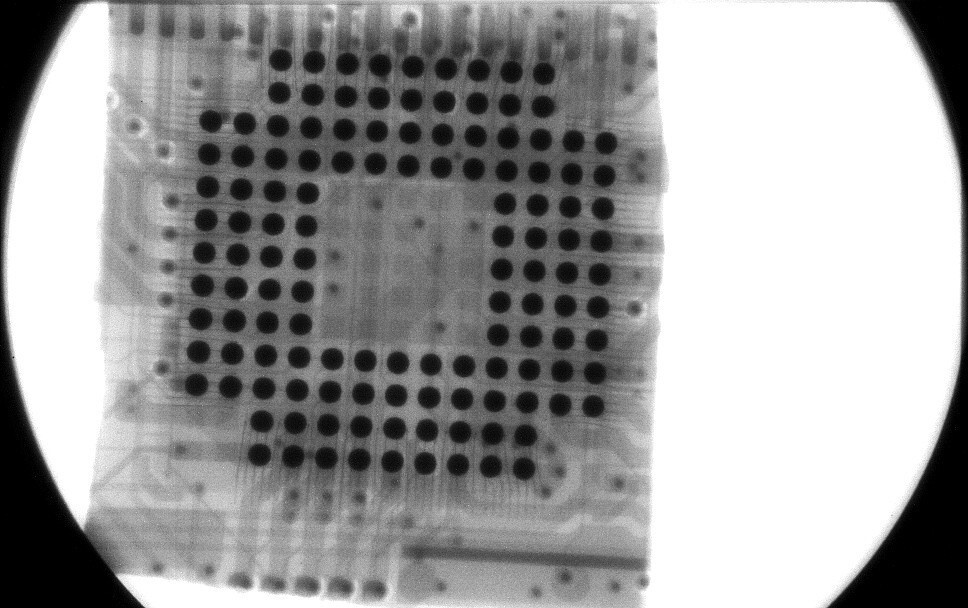

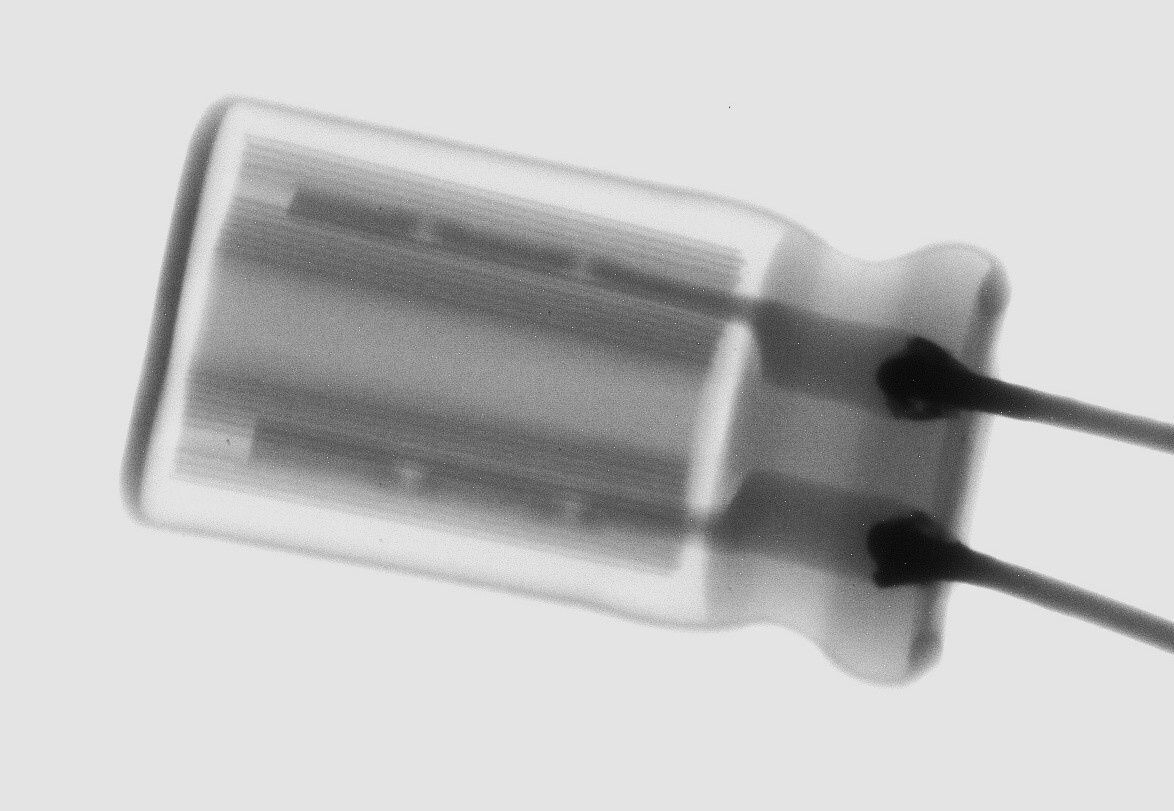

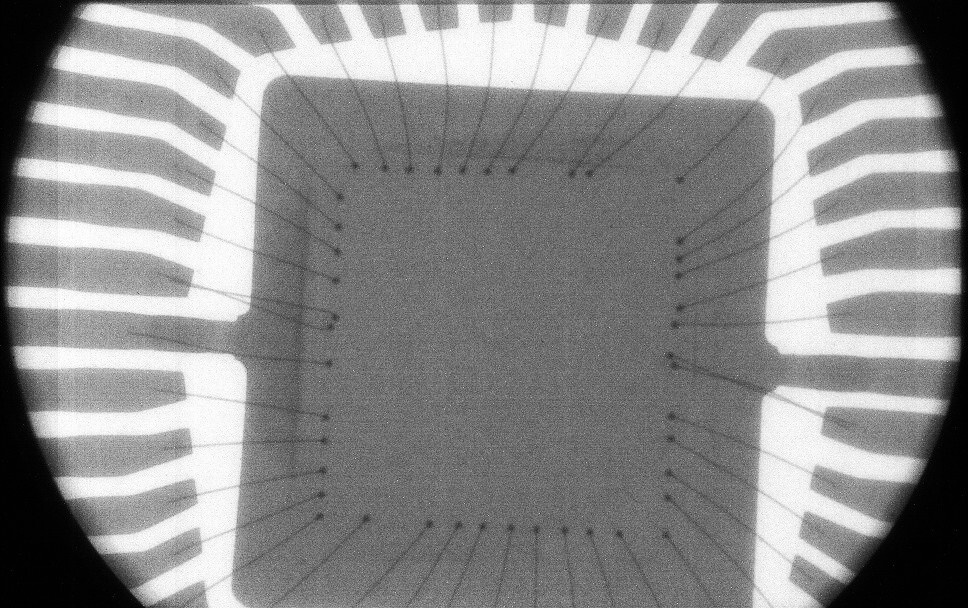

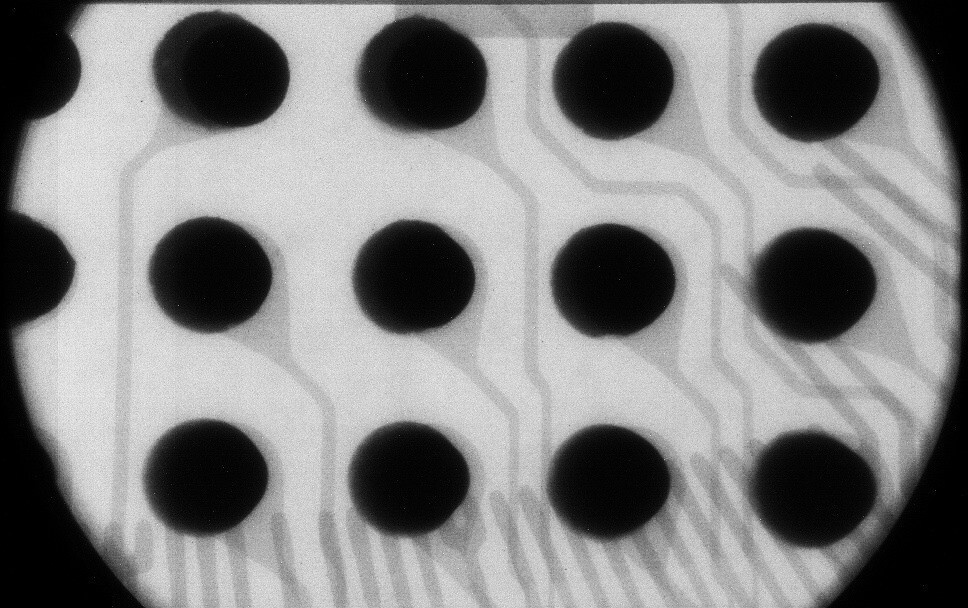

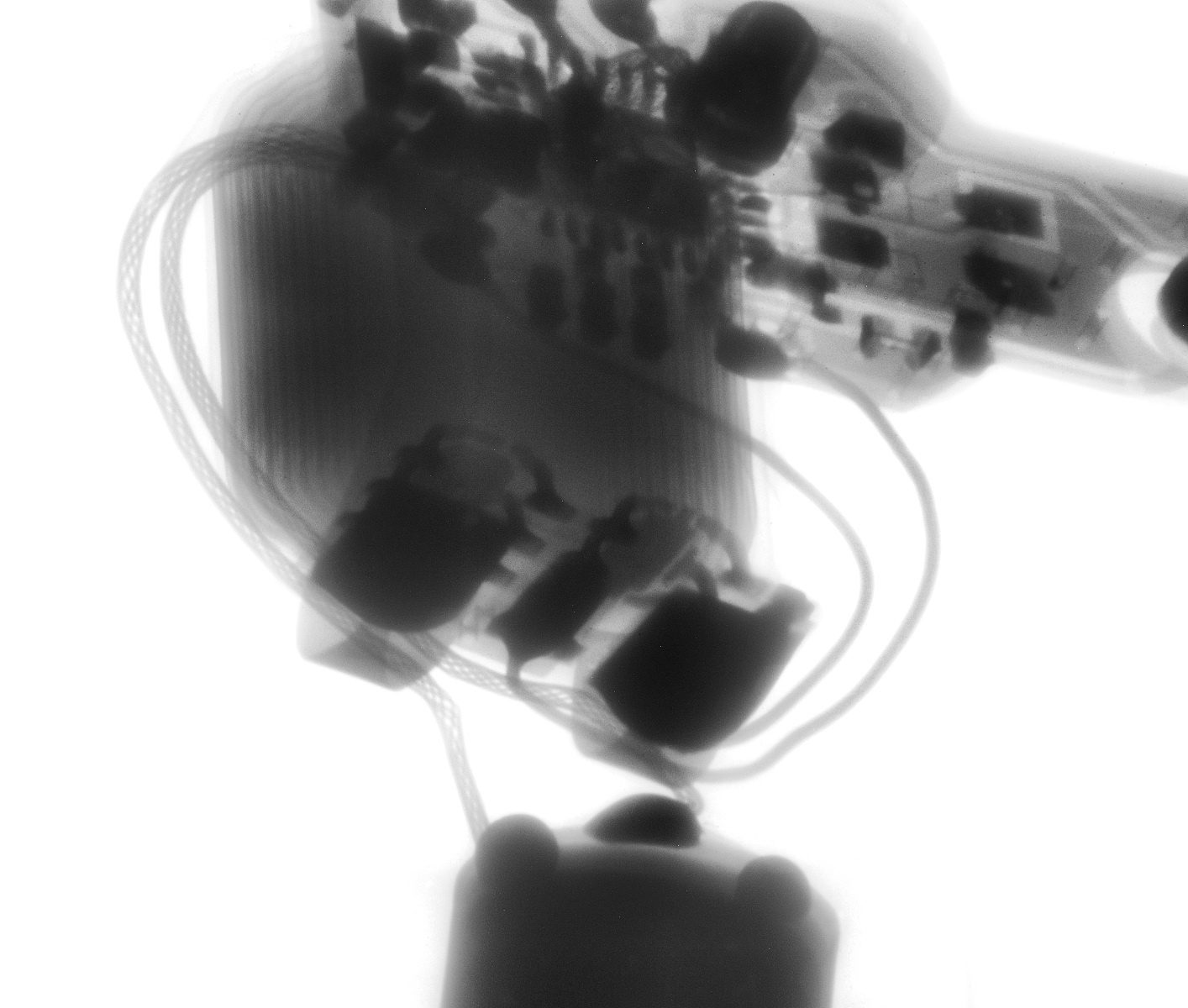

SMD (surface mount device) soldering check, drill hole registration check, small electronic parts check and general small sample check by X-ray.
|| Camera Family
Model name
X-Point SUPER ZERO-DD
X-Point SUPER ZERO-GE
X-Point SUPER ZERO-U3
interface
GigE (PoE)
GigE (PoE)
USB3.0
Specific application
X-ray inspection machine
general purpose X-ray inspection
Image sensor
CMOS image sensor with global shutter
Number of effective pixels
1920 (H)×1200 (V) Approx. 2.3Mpixels
F.O.V.
25mm×16mm
27mm×17mm

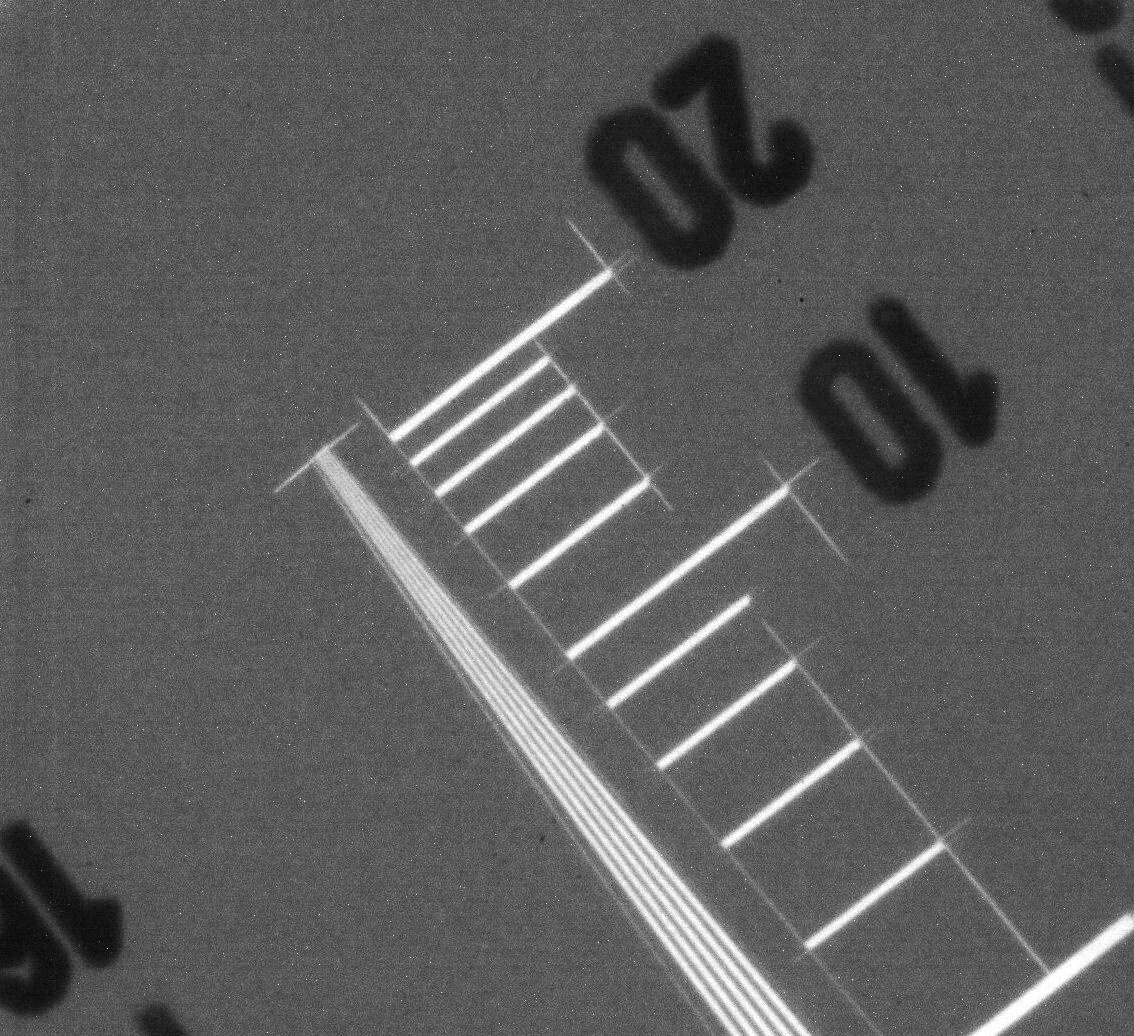

Resolution
16.7 Lp/mm 30micron
dimension
66 mm (H)×66mm (V)×82mm (D)
80mm (H)×90mm (V)×90mm (D)
100 mm (H)×75mm (V)×90mm
X-ray power range
10KV-70KV
10KV-100KV
※USB 3 Vision and GigE Vision are also available. Please ask us details.

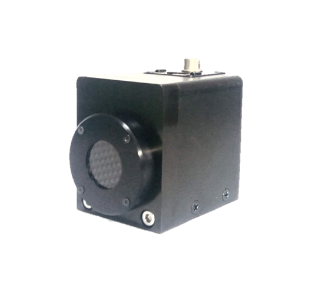

X-Point 5570 makes the transition from existing analogue camera system to new digital camera system.You can easily update your old X-ray inspection machine with analogue TV camera.GigE interface realize plug & Play connection to PC which would be released recently.
Model Name
X-Point 5570
Interface
GigE Vision ,Poe support
Frame Rate
166.5 fps at full resolution
Scintillator Type
CsI (Tl) on Fiber Optic Plate
Field of View
11.7mm(H)×8.3mm(V)
Image Sensor
CMOS image sensor Model with global shutter
Pixel Numbers
812(H)×620 (V) Approx. 0.5M pixels at full resolution
